The PowerBrace™ Foundation Wall Repair System

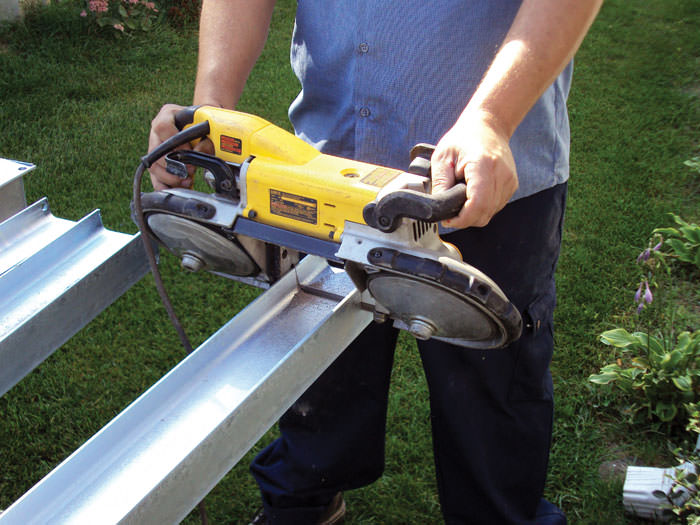

Cutting Wall Braces

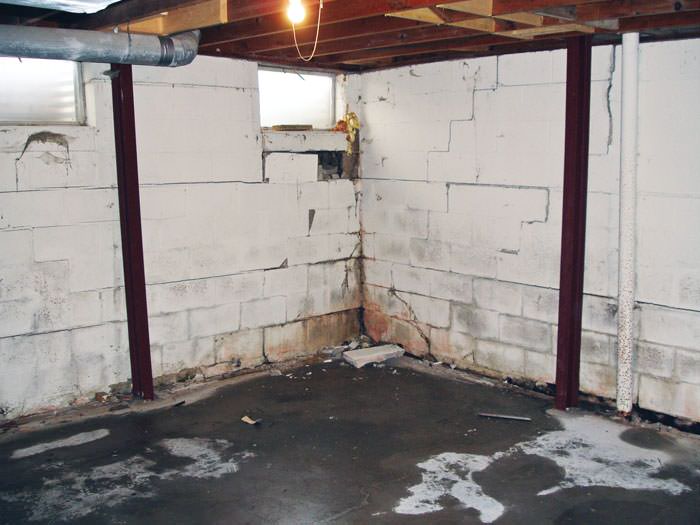

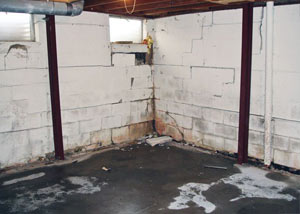

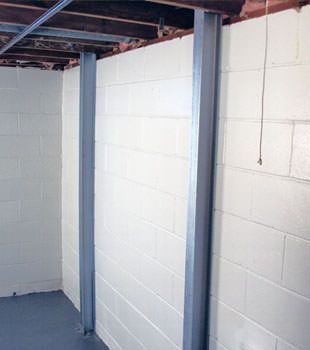

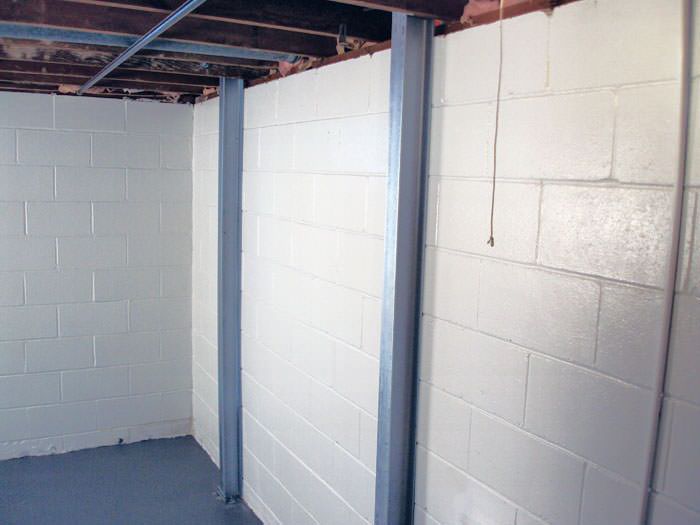

The PowerBrace™ is a wall repair system based on strong steel I-beams. The I-beams and their support hardware have a special rust-resistant zinc coating to ensure that your system will look and perform like new for decades to come.

Our foundation experts will determine how many PowerBrace™ supports are required for your wall repair. Before a PowerBrace™ support is installed in your home, it must be cut to size.

Based on the wall height of your basement, we will cut each beam to the appropriate height.

Securing The Floor Joist Hardware

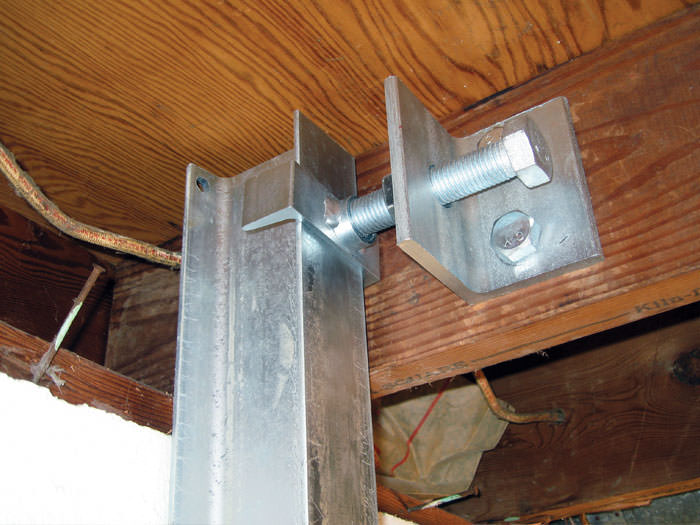

Next, the top of each brace is attached to a floor joist near the mudsill at the top of the wall. The specially designed bracket is bolted to the floor joist and contains a large-diameter bolt for adjusting and tightening after the installation.

A PowerBrace™ installation will not damage your floor framing. To ensure proper performance of this wall repair system, your foundation contractor will inspect the strength of your floor joists prior to recommending this repair strategy.

Fine-Tuning The PowerBrace™ Positions

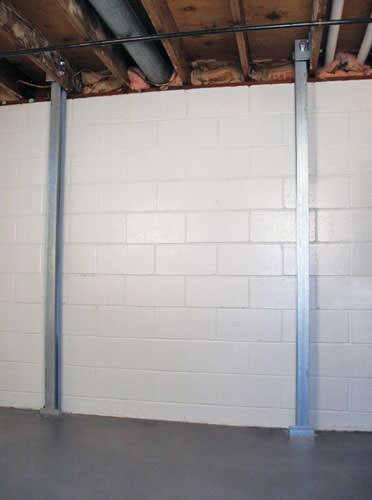

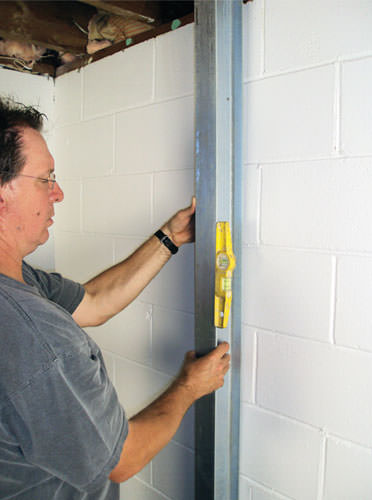

The PowerBrace™ Foundation Wall System works best when each I-beam is perfectly plumb or vertical. The contractor will use a level to fine-tune the position of each beam in preparation for the next step.

At DBS, we take pride in the lasting quality of each of our installations. We stand by each PowerBrace™ installation with our 25-year warranty against manufacturing defects, as well our installation warranty.

Attaching Braces To The Floor

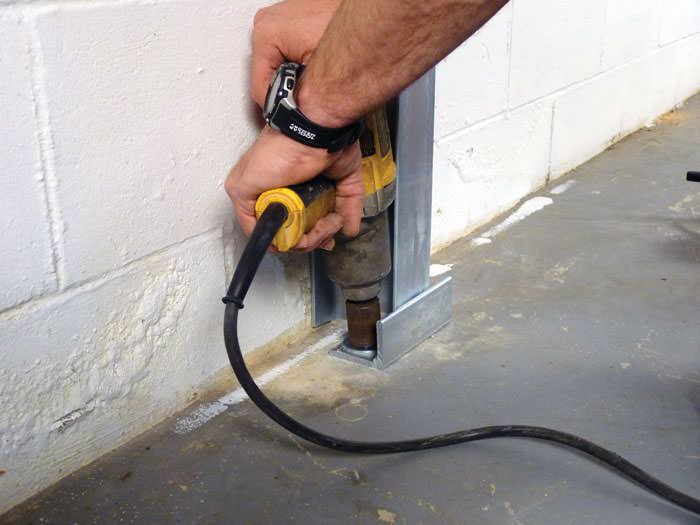

To complete the installation of your PowerBrace™ System, each beam will be attached to your concrete foundation floor with a special, bolt-in-place bracket.

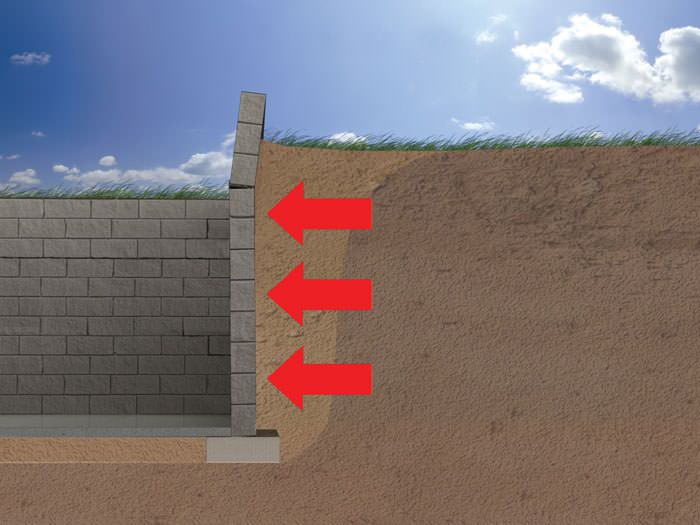

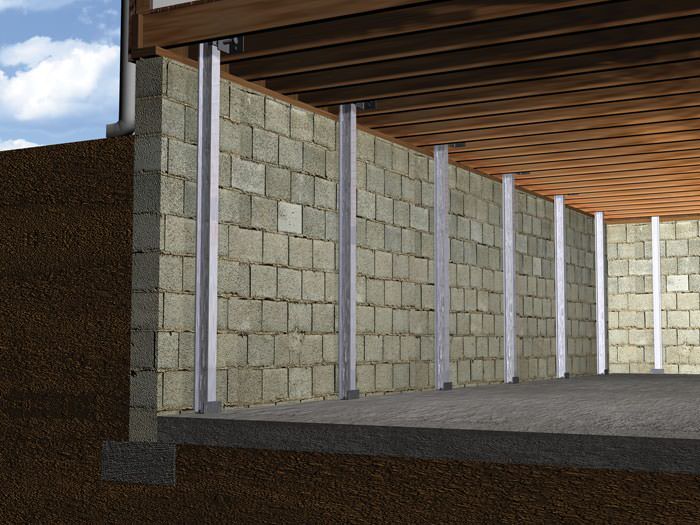

Unlike other foundation wall repair methods that install from the inside of the foundation walls, the PowerBrace™ System spans the entire height of the foundation walls. This makes the PowerBrace™ system suitable for repairing walls that bow and buckle from the middle.

Additionally, the PowerBrace™ can repair walls that are sliding inwards from the bottom or tilting inwards from the top.

Straighten Walls

The PowerBrace™ System includes a unique, patented adjustment mechanism that is unlike any other I-beam foundation wall repair system.

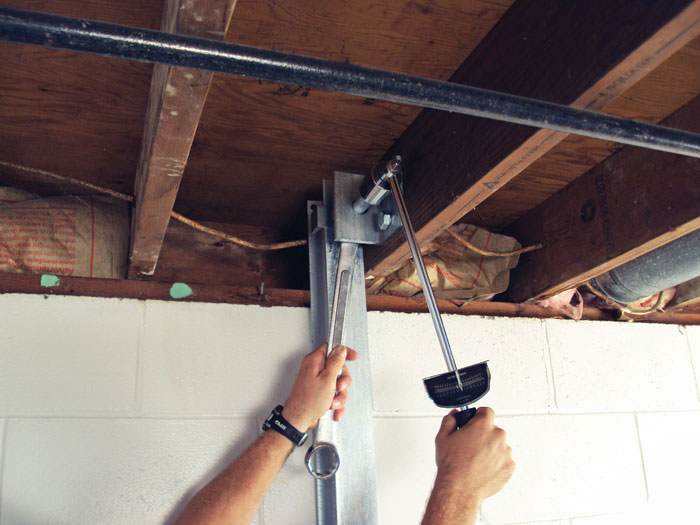

The bracket that anchors each I-beam to a floor joist includes a long bolt that can be tightened over time to advance the I-beam. This can force a bowed or buckled foundation wall back toward is original vertical & straight position. Straightening potential depends on several factors, including soil conditions outside the foundation.
