Foundation Repair Photo Album: Stabilization for Settling Foundation in Anoka, MN

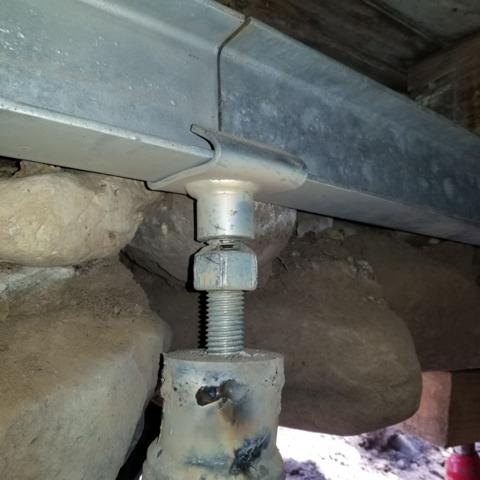

This Anoka, MN home was originally built in the 1890s. It's no surprise that the foundation has shifted a bit during the last 130 years! Looking for a permanent solution, the homeowner contacted us for a free no-obligation estimate. After a thorough estimate, DBS Design Specialist Henrik Makitalo created a custom plan to stabilize the home. He recommended supplemental steel beams and 4 piers to restore structural integrity to the home.DBS Foreman Tyler Nacey and his crew completed the installation. They worked beneath the home to run steel beams beneath for additional horizontal support. The beams were then supported by helical piers. These steel tubes are hydraulically driven into the ground until they reach weight-bearing soil. The piers don't add any weight to the soil or bend under pressure. This home is once again stable and backed by a transferrable warranty against further movement.

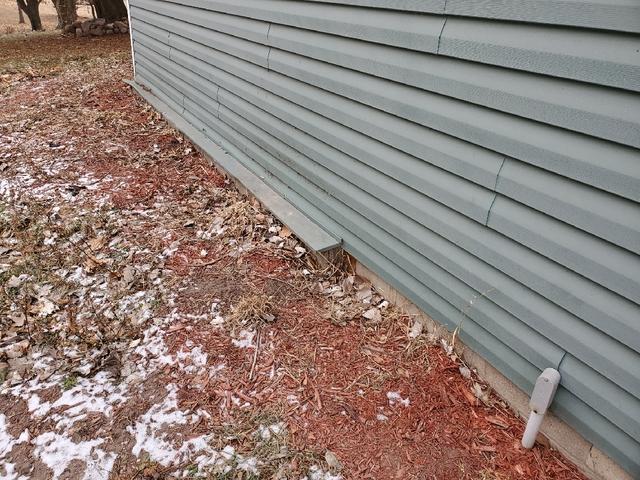

Sinking Foundation in Anoka, MN

Our team will focus on this side of the home. Our Design Specialist measured significant sinking compared to the rest of the foundation.

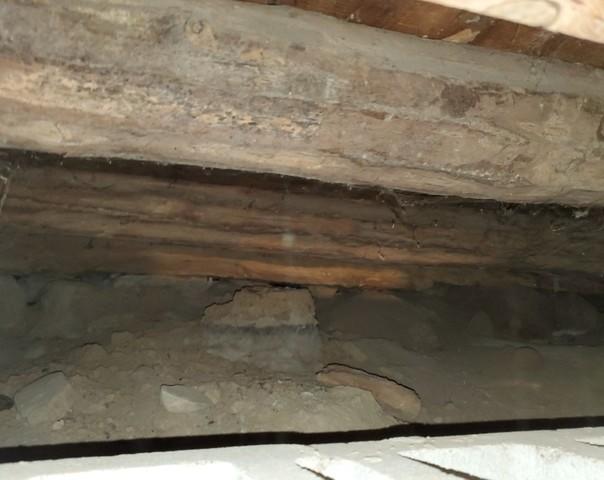

Sinking Log Beams Beneath Home

Seen here are the original log support beams. In order to protect them and the structural integrity of the home, they will need to be stabilized.

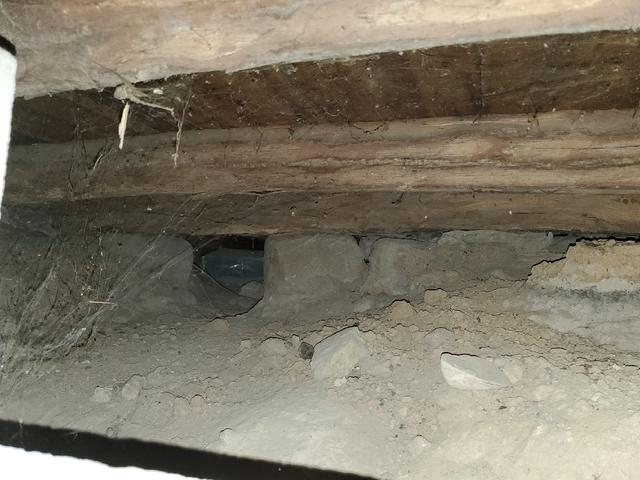

Structural Foundation Issues in Anoka, MN

This crawl space shows the original log beams are shifting. This can result in all sorts of symptoms; wall cracks, bouncy floors, jamming doors, and sinking floors.

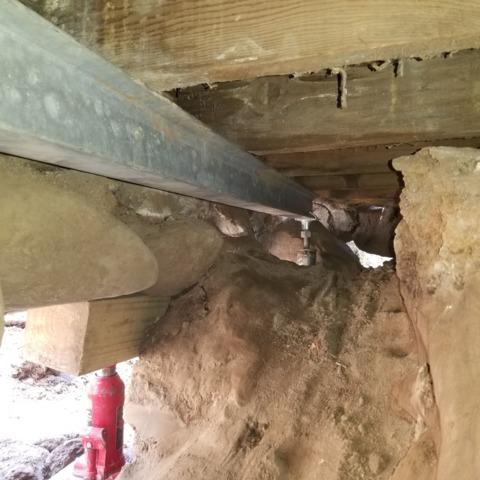

Galvanized Steel Beams Hold the Foundation

In order to stabilize the entire length of the home, our team installed this steel beam from end to end.

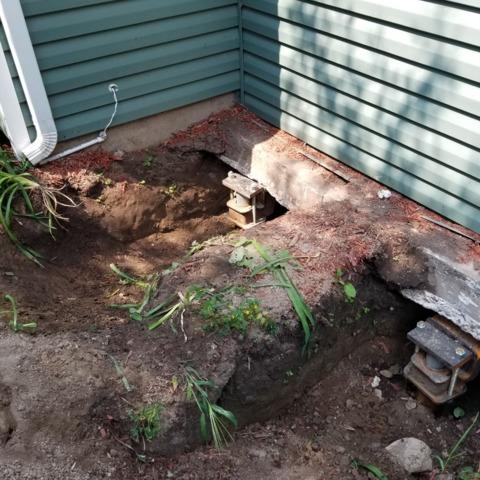

Piers Attached to Foundation in Anoka, MN

These pier brackets are attached to the home's footing. Once the steel tubes are driven into the ground, they foundation is stabilized and can even be raised back to its original position.
