Foundation Repair Photo Album: Foundation and Waterproofing Systems Installed to Support Old Block Foundation in Duluth, MN

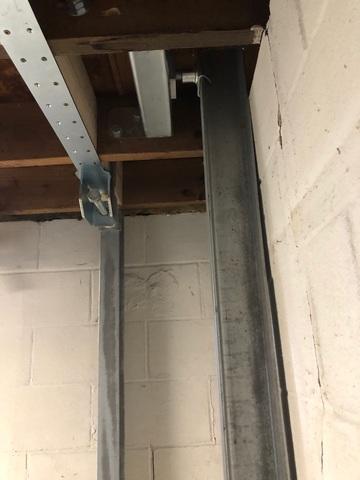

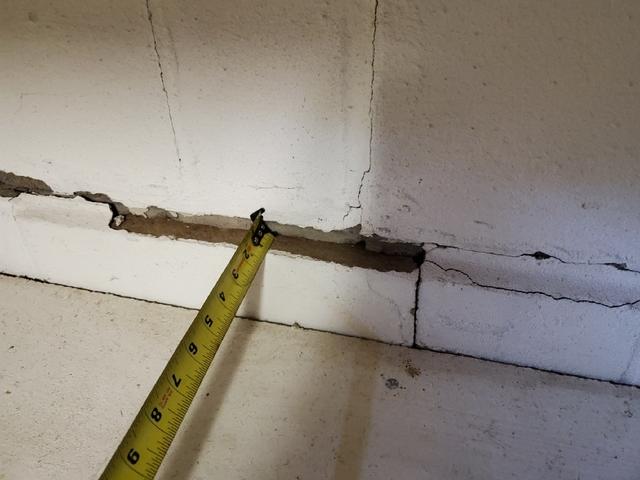

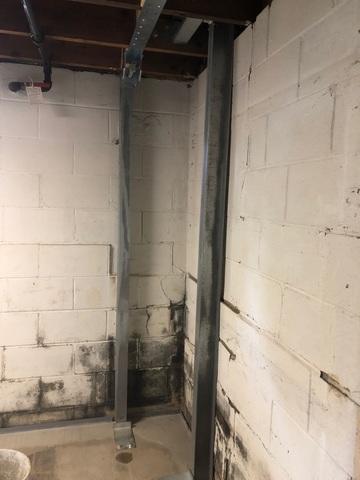

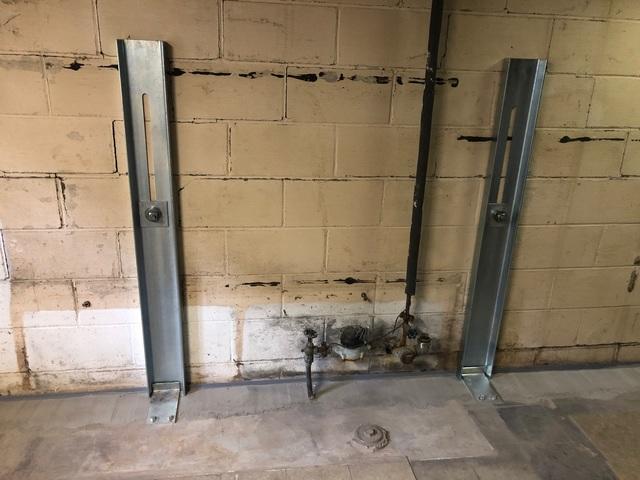

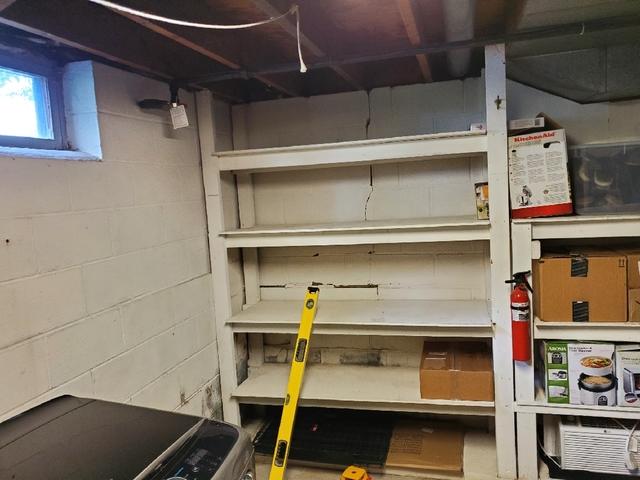

Homeowners in Duluth, MN reached out to DBS for help stabilizing their failing foundation walls. When DBS arrived the foundation walls of this home were cracked and bowing. This problem will not get better with time, but it will get better with us! Our Design Specialist Henrik Makitalo visited the home and provided a free, no-obligation estimate for the homeowner's project. It was determined that both waterproofing and foundation support systems were needed to provide a permanent solution going forward. DBS Foreman Taylor Allen and crew worked on the basement waterproofing job. The crew began by breaking out concrete to create a trench around the home's footing. Our WaterGuard® drain system was put into place and will effectively capture wall and floor seepage, directing it to the home's existing sump pump. DBS Foreman Zach Royer and his production crew then performed the foundation support work. They installed a PowerBrace™ Wall Bracing System, attaching steel I-beams to the concrete floor and the basement rim joists. This PowerBrace™ Wall Bracing System, is meant to support walls from further movement and can be tightened over time, in order to restore the walls to their original position. The PowerBrace™ beams are zinc-plated and backed with a 75-year warranty against movement. Additionally, they installed 3 GeoLock™ earth anchors were recommended to stabilize the failing partially underground walls. The homeowners can now rest easy knowing their home is protected from water and further foundation damage.
